Inkcups Helix One cylindrical UV printer

Benchtop printer with industrial quality

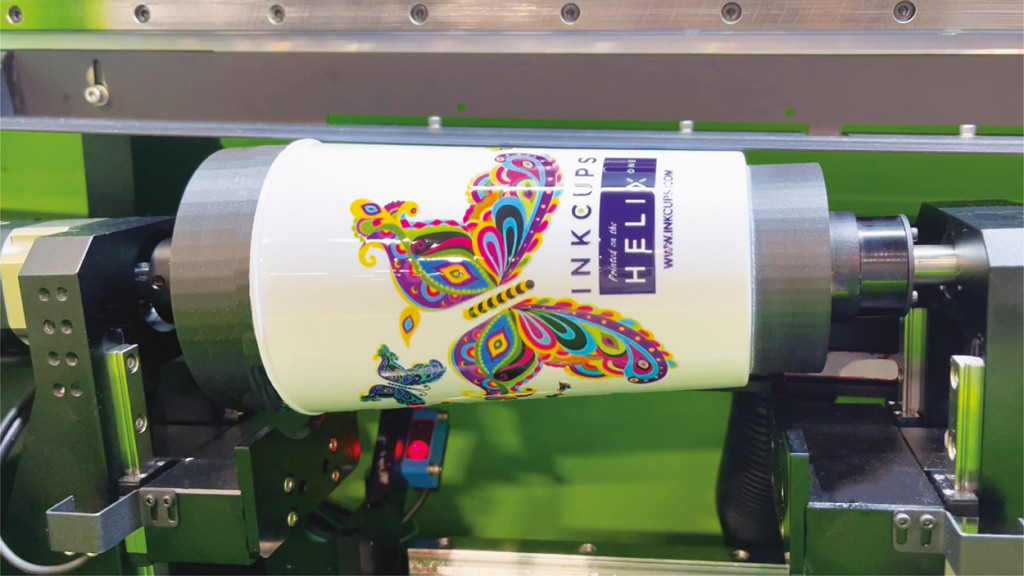

Industrial cylindrical UV printers are a special type of UV direc-to-object printers. Due to their motor-driven rotation unit, they enable 360° direct printing of straight-walled or tapered cylindrical objects using UV technology.

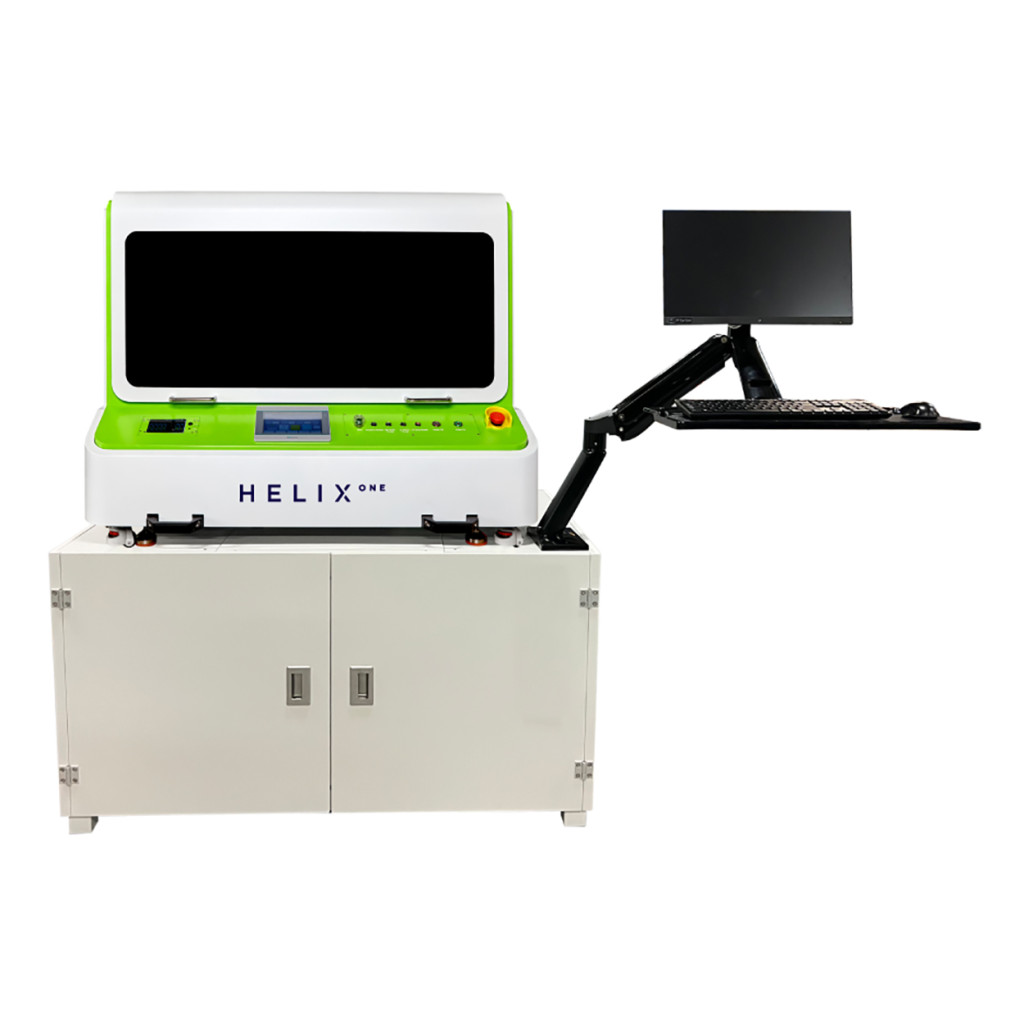

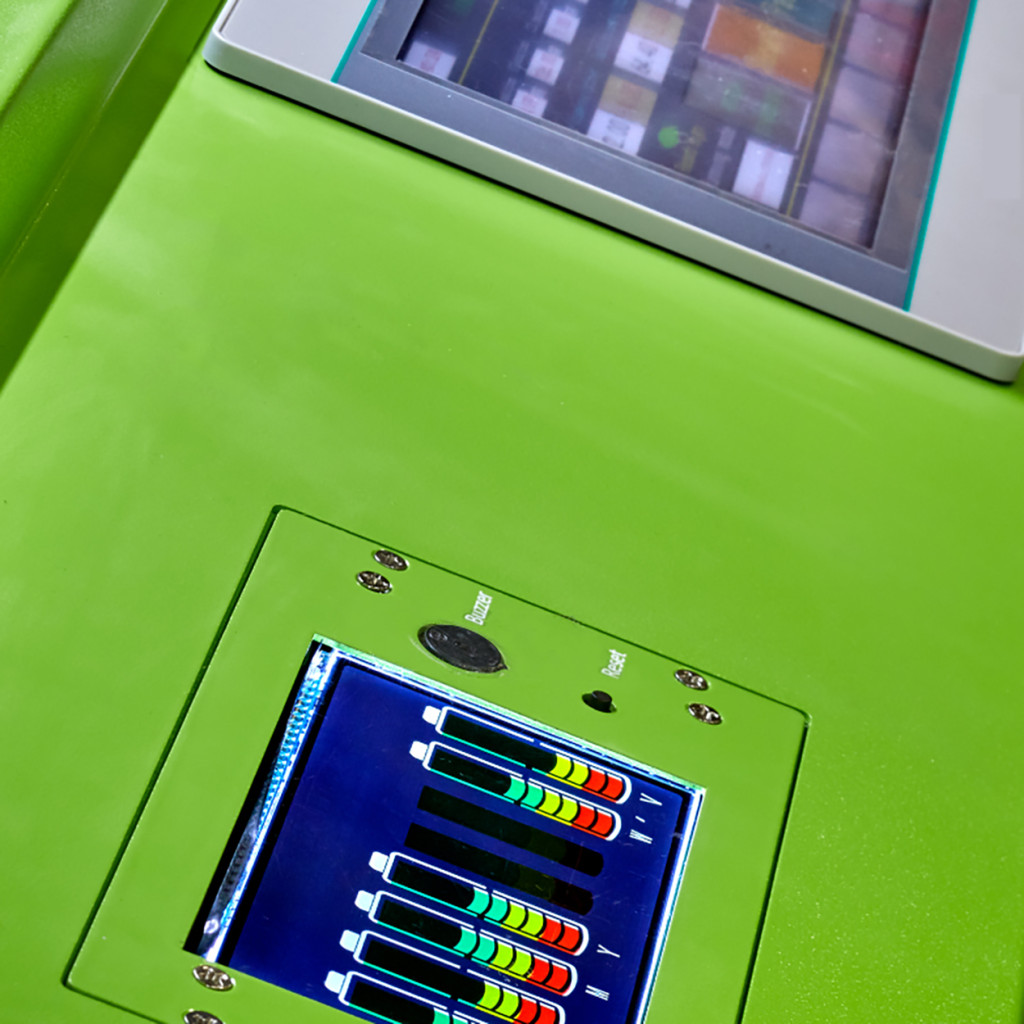

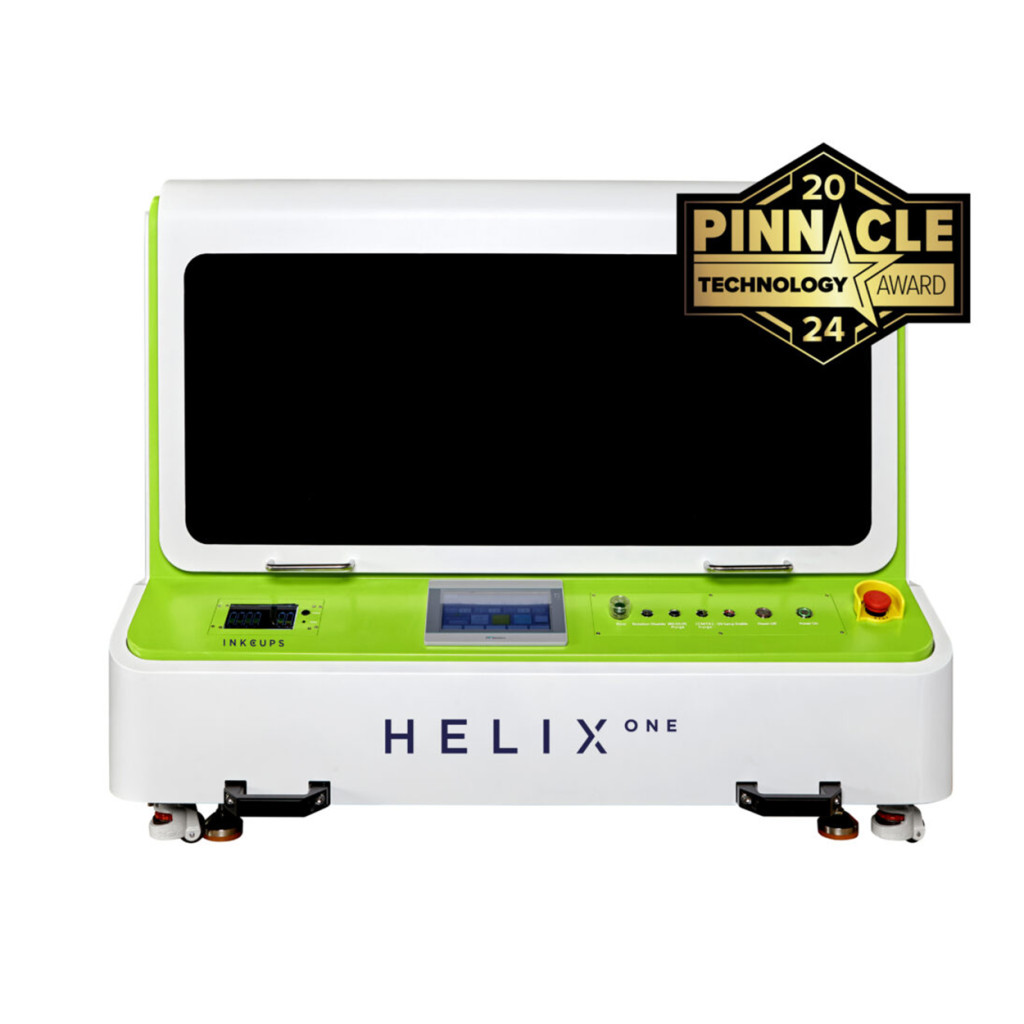

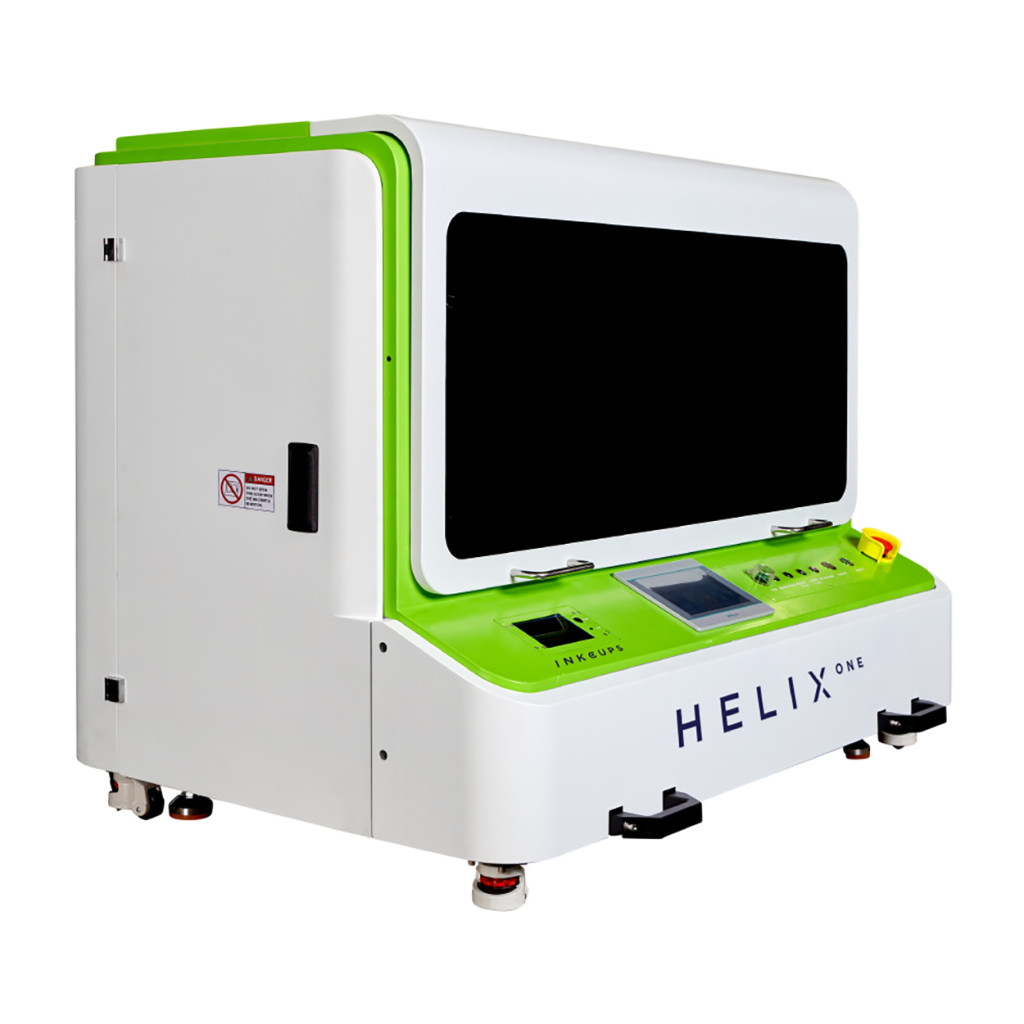

The Helix ONE cylindrical printer utilizes patented Helix® technology in a more compact benchtop design. It is a perfect choice for a variety of customers; from those who are just starting out to those who require a machine per sku. Although a benchtop machine in nature, the components of the Helix ONE are far superior to competitive products in the market. This machine features a motor-driven operation with a fully automatic programmable tooling fixture & height adjust and high-precision, robust linear drive. The Helix ONE also boasts 8W segmented software-controlled UV curing unit for optimal curing. The machine’s build includes an automatic wiping and white and black sub-tank stirring system. The Helix ONE’s print heads utilize state-of-the-art MEMs head technology with integrated temperature control system and high-definition drop size (3-picoliter). Paired with the LV Series CMYK+W+V UV printer ink, the Helix ONE is able to reproduce vibrant and intricate images onto a variety of substrates, even colored or transparent ones due to white underprint.

Decorate small diameter vessels

The Helix ONE can be equipped with a small diameter capability, enabling users to print on parts as narrow as 33 mm (1.3 inches) in diameter and between 51 to 105 mm (2 to 4.2 inches) in length. This feature is ideal for both new and existing Helix ONE users looking to expand their product offerings to include items such as shot glasses, sample bottles, and more.

Fully automatic programmable tooling fixture and height adjust

The Helix ONE’s fully automatic programmable tooling fixture with height adjust precisely holds and positions vessels during UV printing. This fixture can be programmed to automatically adjust its position and orientation based on the specific requirements of the vessel being printed. The height adjust function of the tooling fixture allows for the precise positioning of the product, which is critical for achieving accurate and consistent results. This feature can be particularly useful in situations where multiple workpieces need to be printed using a single fixture, as it allows for quick and efficient changes between workpieces.

8W segmented software-controlled UV curing unit

The Helix ONE Benchtop Cylindrical Printer features a unique segmented design that allows for independent control of each segment, enabling users to target specific areas of a workpiece and achieve precise curing results. Equipped with state-of-the-art software control, this UV curing unit allows for customizable curing parameters, making it ideal for use in a wide range of applications. The Helix ONE is also equipped with a high-powered 8W UV lamp, providing fast and reliable curing performance.

Optional mist extraction system

The optional mist extraction system for the Helix ONE helps to prevent build up of ink and other debris. The mist extraction unit consists of a fan and filter system that draws in the air and captures the ink mist and other particles before they can escape into the environment. This helps to maintain a cleaner work environment by reducing the amount of airborne ink particles that can settle on surfaces.

Full Service

We plan with our customers for the long term: we support our customers as a reliable partner from the decision making to the post-warranty service. Our Full Service means that the prices of our machines include everything:

• Needs assessment, product presentation, quotation
• Delivery and installation within Hungary, commissioning and training
• After-sales support and service (without annual service fee!)
• Post-warranty service at a favorable price

Ask for quotation now!
