JETRIX LXiR190 roll-to-roll UV printer

Shipping time:

3 months

Request for quotation

High quality industrial roll-to-roll UV printer. Width: 1900 mm

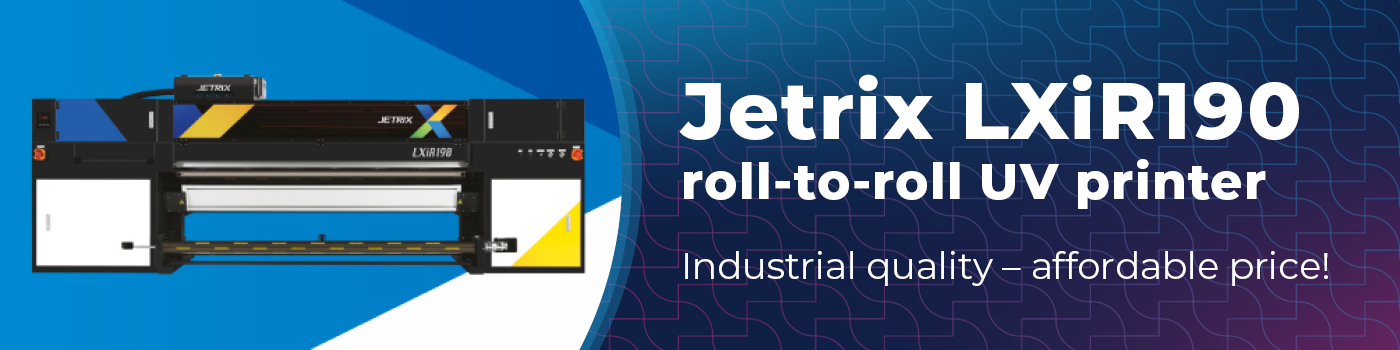

JETRIX LXiR190 roll UV printer

The JETRIX LXiR190 is a top-quality, state of the art UV roll-to-roll printer suitable, which ensures industrial productivity with high print quality. This is guaranteed by the Konica Minolta 1024i print heads, JETRIX's new GUI interface, automatic functions and INKTEC's more than 30 years of experience. INKTEC ink, INKTEC print media and the self-developed JETRIX printer make a complete system.

Industrial print heads

The JETRIX LXiR190 roll UV printer uses Konica Minolta KM1024i print heads, which provide excellent quality and productivity with a print resolution of 720×1440 dpi and a speed of up to 45 m²/hour. The print heads are protected from damage by an anti-crash system.

Multi-roll printing

You could further increase your productivity when printing on smaller media with Multi-roll printing, whether it is paper, vinyl or polyester. In addition, its robust media capability also enables single rolls of media to be used up to 80 kg and 1880 mm width with front and rear double rollers ensuring consistently accurate feeding.

INKTEC complete system: Printer–Ink–Print media!

With the JETRIX printer, you buy a complete industrial system capable of striking. INKTEC develops printers, printing supplies and print media in-house. You can see and test the outstanding scratch resistance and high color gamut of LX-LED paints in person as well in our showroom. The new generation paint and LED UV technology results in wide media compatibility on both flexible and rigid materials!

LED curing

The JETRIX roll-to-roll UV printer includes the latest LED UV lamp technology. It ensures stable, eco-friendly industrial printing with extremely low energy consumption, no warm-up time and an extended lifetime of 10,000 hours.

Expansive variety of applications

A JETRIX LXiR190 roll-to-roll UV printer could be used in various areas such as outdoor advertisements, home decor, office decoration, the fashion industry and many more. It could be used to print on a variety of roll materials (different kinds of paper, vinyl and textiles such as polyester etc.).

Info

Type:

roll-to-roll UV printer

Brand:

Jetrix

Video

Specifications

Model: Jetrix LXiR190
Type: Roll-to-Roll UV LED Printer
Printing speed: 8 pass: 16 m²/h, 6 pass: 20 m²/h, 4 pass: 27 m²/h, 2 pass: 45 m²/h
Printhead: Konica Minolta KM1024i
Ink curing: UV LED lamps
Max. print resolution: 720×1440 dpi
Print mode: CMYK+W
Max. printable width: 1880 mm
Printable materials: tarpaulin, vinyl, banner, etc.
Ink: Inktec LX-LED
Ink types: Cyan, Magenta, Yellow, Black, White
RIP recomendation: Caldera, GMG, Photo Print Server
Sizes: 3520 mm (width) × 1200 mm (length) × 1600 mm (height)
Weight: 600 kg
