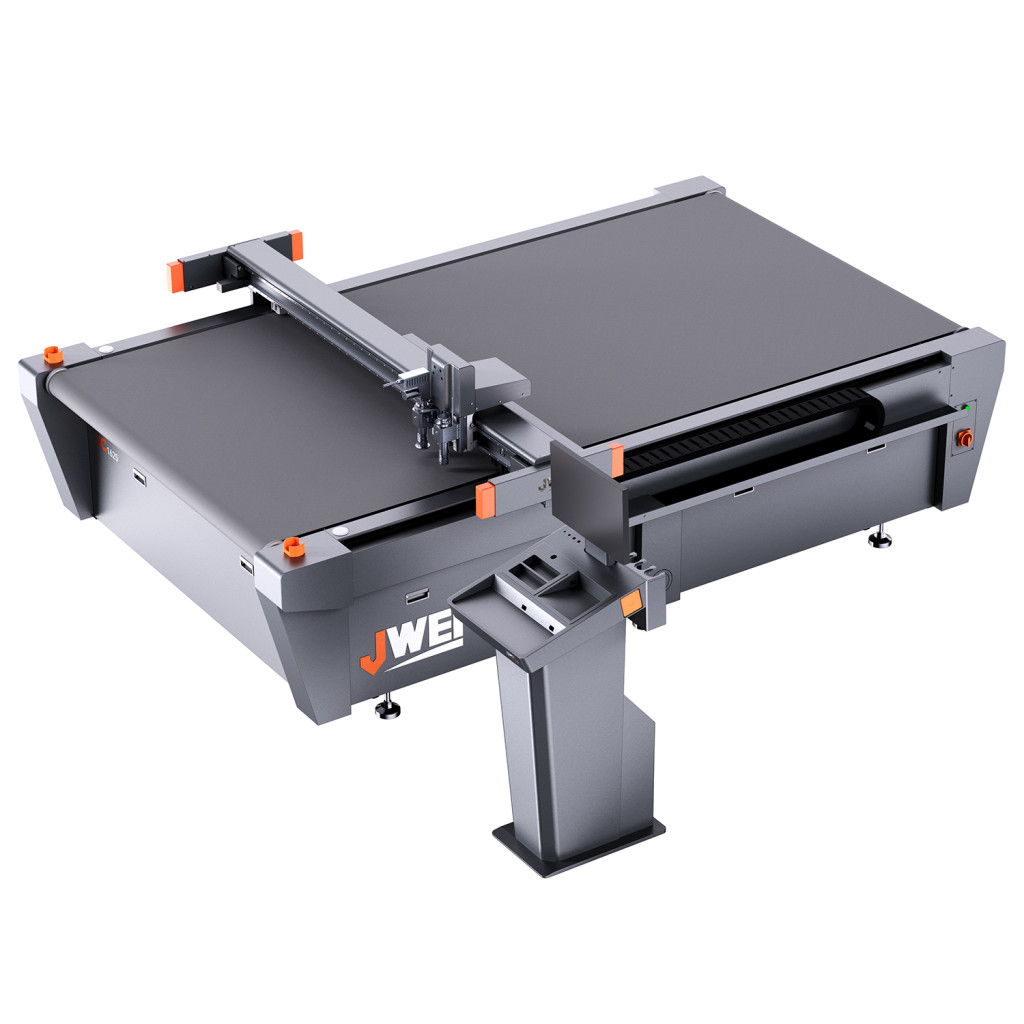

JWEI SC Industrial Flatbed Cutting Machines
Shipping time :
3 months
Request for quotation
Finally a reliable, premium quality industrial cutting machine, with affordable price.
Double universal tool cutting head.
Ideal to use in sign and print industry, fabric industry, packaging industry, car & other vehicle manufacturing industry, leatherworking industry, furniture industry
JWEI industrial flatbed cutting machines
Jingwei Systemtechnik Ltd. is a leading manufacturer of digital cutting machines.
As a pioneer in his field, he aims at continuous technological innovation by developing new engineering solutions.
Thanks to the continuous innovation, the footwear, apparel, packaging, advertising, electronics and leather industries have gained enormous popularity.
Precise, fast and cost-effective
The SC series digital cutter is a multifunctional digital cutter designed to meet all post-processing needs. The modular tool head design allows convenient tool change and allows you to purchase tools in a cost-effective way according to individual needs.
The digital cutter's six-axis motor-controlled system delivers high speed and precision. The integrated controller reduces the error rate and maintenance costsm while the zone-based vacuum system ensures proper material fixing.
Main features of JWEI SC Industrial Flatbed Cutting Machine
• Multifunction digital cutting machine that can be quickly changed to adapt to different materials
• LCD touch screen with user-friendly interface
• Built-in safety features to facilitate accident-free workflows
• Perfect for both small and large jobs
• Zonal vacuum table
• Swivel cutting washer
• Servo drive for fast and precise work
• Automatic depth of cut adjustment to increase knife and cutting mat lifetime
• Lots of standard accessories
• Available in several sizes according to your individual needs
• Optional sheet feeder for automated cutting of printed products
• 1-year warranty
One machine – countless post-processing functions!
The digital cutter offers flexible tool module options that meet the needs of a variety of industries, such as:
• leather industry
• textile industry
• car manufacturing
• signmaking and advertising decoration
• packaging industry
• printing industry
• interior and exterior decoration
Some examples of tools and their applications
Non-oscillating tool: universal cutting tool for various soft materials up to 5 mm thickness (e.g. plastic, flexo glass, PP, hight density PVC foam board, leather).
Kiss-cut tool: for kiss-cutting thin multi-layer materials.
Oscillating cutting tool: for cutting kinds of corrugated paper, cardboard, carpet, grey board, etc. up to 25 mm.
Router tool: for cutting acrylic board, composite materials and high-density materials such as dibond, epoxy, mdf etc. up to 15 mm.
Creasing tool: creases a variety of materials.
Foam cutting tool: for cutting foam board up to 50 mm thickness.
V-cut tool: for cutting cardboard and similar materials, up to 18 mm thickness. Adjustable cutting degree.
Rotary tool: for cutting fabric, carbon, fiber glass and textiles up to 8 mm thickness.
Basic accessories for CB03II cutting machine
• Double tool holder on head carriage
• Drawing pen tool
• Laser position pointer (for manual positioning)
• Motion detector and emergency stop
• Vacuum table divided into zones
• Automatic cutting depth adjustment tool
• Touch panel
• Soundproofing
• Air compressor
• Jwei software and USB key
Standard Tools
• Electronic oscillating tool (1 mm movement)
• Universal cutting tool
• Optical registration (CCD camera)
• V-Cut tool for corrugated and honeycomb boards
• Contour cutting tool (Printed materials - stickers and papers with backing)
• Creasing roller tool
Optional Tools
• 350W NSK (Japanese) Milling Tool (60000RPM)
• Automatic sheet feeding system (1.6 m wide)
• Automatic sheet feeding system (2.1 m wide)
• Automatic roll dispensing system (3.2 m wide)
• Electronic circular knife tool
• Foam cutting tool
• V-Cut tool for pastpart frames
• V-Cut tool for gray cardboard
• Electronic oscillating tool (2 mm movement)
• Elektronic oscillating tool (4 mm movement)
• Top camera structure
Available sizes
You could choose from the following size options for JWEI SC industrial flatbed cutting machine:
1600×2500 mm
1300×1100 mm
1300×2500 mm
1600×1800 cm
Specifications
Multi-functional machine head:Easy to change different tools. Engraving and routering. Oscillating through cutting/kiss cutting/creasing/plotting/laser positioning,and precise camera registration.
Tools: Various kinds of cutting blades, different size of creasing wheels
Safety Device: Infrared sensor, responsive, safe and reliable
Moving Speed: Up to 1800mm/s
Cutting Speed: Up to 1800mm/s (depends on kinds of material and tools)
Cutting thinkness: <50mm (according to deifferent material, customization available)
Cutting material: All kinds of corrugated paperboard, grey board, KT board, PVC expansion sheet, honeycomb board, car stickers, light slide, magnets, PP gum, flex banner, flag fabric, textile,EPE foams, EVA, PVC plate, Acrylic, thick foam, etc...
Cutting Material Affixed: Smart (optimal) Multi-zone vacuum area
Repeat precision: +-0.05mm
Interface: Ethernet Port
Numerical Control Panel: Multi-Language LCD Touch screen
Transmission: Digital servo motor, straight rail, synchronous belt, guide screw
Rated Power: 9.5KW
Rated Voltage: 380V/220V+-10%, 50Hz/60Hz
