Mutoh XpertJet XPJ-1462UF UV object printer

Shipping time:

2-3 weeks

Request for quotation

Flatbed UV printer with Japanese top quality! The largest DTS model of the XpertJet series, with a printable area of 1420x700mm (55.9"x27.5"). 4 colors + white + varnish, professional RIP software.

Versatile and productive: large printing area + big capacity + 4-zone vacuum bed

Complete system: printer + ink + RIP software + Full service

MUTOH: Japanese precision and constant development

Mutoh is one of the world's leading manufacturers of wide-format digital printers and cutting plotters, which are all designed and manufactured exclusively in Japan, from the consumables to the very last screw. With numerous sales points in Europe, the Middle East and Africa, the brand name is now synonymous with stable quality and reliability.

Japanese Mutoh values precision and high quality through craftmanship – in contrast to the accelerated production which results in poor quality typical of Chinese brands. From the engineering design of new products, through the assembly by expert colleagues, to the improvement of existing products, the entire process implements the Japanese Kaizen philosophy, the central idea of which is the pursuit of continuous improvement. The company, founded in 1952, is therefore not stuck in the past: with seventy years of experience behind them, they are constantly working to provide state-of-the-art technological solutions.

An UV flatbed printer for all industrial needs

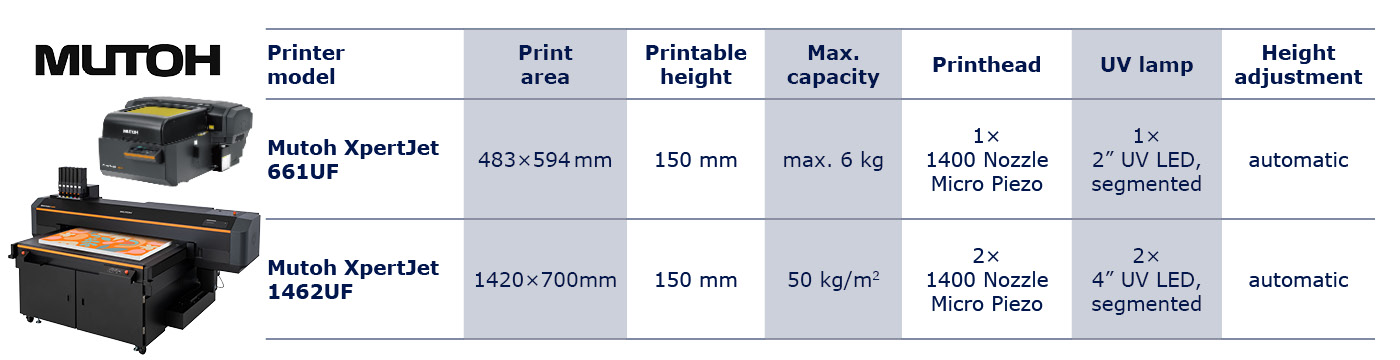

Mutoh XpertJet 1462UF builds upon the strengths of XpertJet 661UF modell taking its capabilities to the next level. A true industrial printer: its print area of 1420 × 700 mm (55.9" ×27.5") and outstanding strength makes it able to print on large, heavy (up to 50 kg/m²) or thick (up to 15 cm) objects. With its 4-zone vacuum table you can also print multiple, smaller-sized objects at a time. Its staggered, 1440-nozzle double piezo printheads and 4", segmented UV LED lamps placed on both sides of the carriage provide high productivity with a printing speed of up to 7,75 m²/h.

You can use it on almost any hard surface – including uniquely shaped objects or heat-sensitive materials – such as glass wood, acrylic, ceramic, PVC or leather.* With printing white as a base color, you can print perfect, vivid colours even on the surface of a coloured object. You can create a special surface effects with varnish, and Mutoh's revolutionary innovation allows you to print in a single pass with CMYK+W colors, glossy and matte varnish. With instant-drying inks, you can even create embossed and 2,5D prints (e.g. regular Braille) by multiple layer printing.

The price includes original MUTOH UV inks, which provide you vivid, high-quality, durable prints, while they are also environmentally friendly and safe to use, proved by a Greenguard Gold certificate as well. In addition to the inks, the printer comes with original MUTOH VerteLith RIP software, which enables you to maximize its capabilities, as well as our usual Signdepot Full Service.

The Mutoh XpertJet 1462UF UV flatbed printer won the prestigious EDP Award in the Printing Systems/Direct To Shape category in 2024 and in 2023 the Pinnacle Award – wich recognises products that improve or advance the printing industry – in UV/Latex Flatbed category.

Take your business to the next level!

Mutoh has been integrating piezo printheads since 1999. Due to decades of experience and continuous development, their printheads are now worthy opponents of the most well-known brands. The Mutoh XpertJet 1462UF UV object printer is equipped with double, 8-channel, 1440 nozzle Micro Piezo printheads, specifically developed for UV printing to provide exceptional print quality. The Piezo Variable Drop Technology ensures perfect coverage and precise ink landing from the thinnest to the thickest materials. White ink circulation system ensure smooth operation by preventing pigment precipitation and accumulation.

This model is an ideal choice for industrial purposes: it provides high productivity with a maximum printing speed of 7,75 m²/h. The first one of the staggered printheads print CMYK colors, while the other prints white and varnish, ensuring 2-layer printing (CMYK+W/V) without loss in printing speed. Therefore XpertJet 1462UF can provide up to 6 times higher productivity for two-layer printing in the same printing mode as the XpertJet 661UF model.

Forget banding, mottling and bleeding!

Maximize your profit: print fast, in an excellent quality with minimal effort! Intelligent Interweaving (i²) technology is Mutoh's revolutionary development, which eliminates the typical errors of inkjet printing by printing a wave pattern instead of traditional, straight line printing.

This unique development found only in Mutoh machines

eliminates banding, mottling and bleeding
creates sharp and vibrant prints
without reducing print speed
while saving ink
and saving you time, since less set-up and attendance is required.

Optimized curing with dual UV LED lamps

UV printing allows you to print directly onto the surface of the object, resulting in easy and fast production. UV LED technology enables printing on heat-sensitive surfaces and low energy consumption due to lower curing heat.

In case of XpertJet 1462UF UV object printer, two new 4" wide UV LED lamp ensure fast curing for instant and ready-to-use output. Positioned on both sides of the carriage, they optimize bi-directional printing.

Object printing has never been so fast!

Mutoh's revolutionary innovation is the patented Local Dimming Control Technology. The UV lamp is divided into 6 sections, and each of them can be individually adjusted. This allows the production of multiple varnish effects (glossy, semi-glossy and matte) in one pass saving you a lot of time, increasing productivity, while reducing dust adhesion as well.

Flexible media handling

The XPJ-1462UF offers both table space and strength, accommodating heavy or thick media. Accompanied with a 4-zone vacuum system, it opens the door to diverse applications, ranging from small items to larger objects, enhancing productivity and reducing delivery times.

The 4-zone vacuum table can be configued for single- and multi-area vacuum suction securing virtually any media in place. The vacuum table features 4 suction force levels (strong, medium, low, and off) to effectively secure various media types. Switching between vacuum zones and variable suction pressure can easily be selected from a dedicated control panel at the front of the printer. To keep your hands free for substrate manipulation, the vacuum system can be controlled using a robustly designed foot switch.

You can use both the suction holes on the vacuum table surface as well as predrilled holes beyond the print area to fix custom jigs to secure your media. The unique ferromagnetic table allows additional security for jigs and other various magnet-based products.

Easy to use

The printer's highly rigid structure provides high stability and precise ink landing for high quality printing. The onboard media sensor automatically detects media thickness making production easier and more effective. You can adjust settings on an easy-to-use LED touch panel. The status of the printer can be checked at a glance from a distance from the signal tower light. Operators can easily access the ink delivery system from the front of the printer. Automated obstacle detection provides smooth workflow. An optional ionizer will neutralize static charge, resulting in better ink adhesion to media.

The Simple nozzle check function allows you to perform a nozzle check at any time in a dedicated area next to the table, even after setting up the jig/media on the table and performing thickness measurement. Automated nozzle check unit and nozzle area select reduces loss of prints and downtime. It detects missing nozzles, attempts recovery via cleaning and activates the Nozzle Area Select function to continue production with limited nozzle area.

Genuine MUTOH UV LED inks

The key to Mutoh's success is that all development is done in-house, resulting in 100% coordinated systems. This also includes consumables: they have developed dedicated inks tuned to specific piezo heads, covering specific applications to achieve the perfect end results. For Mutoh XpertJet 1462UF UV printer you can pick from two options of UV LED inks to best suit your printing needs. Both types produce high-quality, durable prints for indoor and outdoor use as well.

US61 – new generation flexible UV LED ink (included in the price!)
• Flexible and stretchable surface after curing: up to 200 % elongation, perfect for printing on flexible materials, such as phone cases.
• Safe and Environmentally responsible: VOC-free, no need for extractor, meets current and expected near future EU regulations on the use of chemical substances – GREENGUARD Gold certified

UH21 – rigid UV LED ink (optional)
• Hard, rigid surface after curing, ideal for creating embossed, 2,5D prints (e.g. Braille)
• Safe: VOC-free, no need for extraction.

Optimize the performance of your Mutoh printer: VerteLith™ RIP software

The price includes VerteLith™ RIP software, specially developed by Mutoh for their printers, which allows you to maximize the capabilities of your printer:

A features list unmatched in its category (printer statuses, color management, pre-production tools, soft proofing, prior ink cost calculation, post-processing preparation tools, etc.)
Multiple features dedicated to UV printing: advanced 6-color support, multi page PDF to support variable data, jig printing with automatic layout, emboss printing presets and a structure library with 100 different texture patterns.
User-friendly interface, simple workflow
Fast RIP processing for both PDF and PostScript files
„Mutoh Clear Tone” technology: outstandingly smooth color gradients
Perfect handling of transparencies and spot colors
Built in „Mutoh CMYK” ICC profile to maximize gamut
Professional profiling tools
Multi language chat support

VerteLith™ has won the prestigious EDP Award in 2021, recognizing it as “ideal for smaller print shops" which "offers functionality that you will find only at expensive RIP's from independent RIP vendors."

Say goodbye to limitations!

With Mutoh XpertJet 1462UF UV object printer you can print on almost any hard surface object, such as wood, glass, acrylic, ceramics, PVC, leather, etc.* It is suitable to print on white, non-white and transparent materials as well, even uniquely shaped objects up to 15 cm height and heat sensitive materials. It has both sufficient table area and strength to print on large, heavy or thick media. Just to name a few things you could produce:

information boards, advertising boards, name plaques
wall decor, home decor items
Braille, embossed inscriptions, varnish effects
promotional items and unique gift products
awards, medals, certificates
phone cases
packaging

* To print on glass, acrylic and similarily smooth surfaces, you need to use special precoat!

Full Service

Since we plan with our customers for the long term, it is important for us to support our customers as a reliable partner from the decision making to the post-warranty service. Our Full Service means that the prices of our machines include everything:

Needs assessment, product presentation, quotation
Delivery and installation within Hungary, commissioning and training
After-sales support and service (without annual service fee!)
Plus: post-warranty service at a favorable price

Choose a reliable Mutoh partner!

Ou company, as an official Mutoh partner in Hungary, provides servicing for Mutoh printers both during and after the warranty period by our own (not provided by an external company!) trained service technician colleagues.

Signdepot has been dealing with small and large format printers and other sign making machines for 20 years. Our service technicians are trained at Mutoh factory to always have an up-to-date knowledge on the machines. We not only guarantee excellent prices but also appropriate professional support!

Ask for quotation now!

sales@signdepot.eu

Details

Signdepot is the official partner of MUTOH in Hungary from 2025.

Info

Type:

UV object printer

Brand:

MUTOH

Specificatoins

Model: MUTOH XpertJet 1462UF
Type: UV object printer
Print area: 1420 mm × 700 mm (55.9” x 27.5")
Max. media thickness: 150 mm
Max. media weight: 50 kg/m²
Printable media: hard objects – eg. PVC, acrylic, cardboard, wood, ABS, PC, PE, PET, glass, aluminium, etc. (Ink adhesion will vary among media type and brand. The level of required adhesion on the final graphic depends on handling and usage. Individual testing is required in function of your specific application. Challenging substrates like glass, acrylic, PP may require the use of adhesion promoters/primers.)
Printhead: staggered dual Micro Piezo printheads (8×180 nozzles)
Max. printing speed: 7.75 m²/h
Max. print resolution: 1440 x 1440 dpi
Ink type: UH21 (rigid) and US61 (flexible) UV LED inks
Ink colors: CMYK+W+varnish
UV lamp: dual 4" LED UV lamp with 6, individually adjustable segments
Table height adjustment: automatic
Vacuum table:4-Zone magnetic vacuum table
Optional accessory: Ionizer bar
Software: Mutoh Vertelith RIP software
Recommended Working Environment: temperature: 20-32°C, humidity: 40-60% (max. fluctuation: 2 °C/h / 5% RH/h)
Size: 2770 × 1459 × 1569 mm
Weight: 500 kg
