iECHO 1700 XY automatic poster cutter
iECHO 1700 XY automatic poster cutter
62
20 509.95 €+ VAT (26 047.64 €)
7 675.19 €+ VAT (9 747.49 €)

iECHO 1700 XY automatic poster cutter

62
iECHO 1700 XY automatic poster cutter
62
20 509.95 €+ VAT (26 047.64 €)
7 675.19 €+ VAT (9 747.49 €)
Saving (gross) 16 300.15 €
Expected delivery date:
13/03/2026

► Interested? Contact us!

Automatic XY cutting from roll to sheets. Cut on four sides at the same time. Automatic registration mark reading.

Available on stock, after out of stock, you can only pre-order it.

DEMO machine from our showroom, works perfectly and is in perfect condition.

iECHO 1700 XY automatic poster cutter
iECHO 1700 XY automatic poster cutter

iECHO 1700 XY automatic poster cutter

iECHO 1700 XY automatic poster cutter is mainly used for the slitting and trimming of printing materials and advertising decoration materials. It has an automatic correction system. During the cutting process, it can automatically adjust the position of the slitting knife and the offset angle of the cross-cutting knife by identifying and positioning the printed marks. It can easily deal with the offset problem during the roll material, winding, and printing process, and ensure the correct cutting effect in the end, so as to realize the efficient and accurate continuous cutting of printing materials.

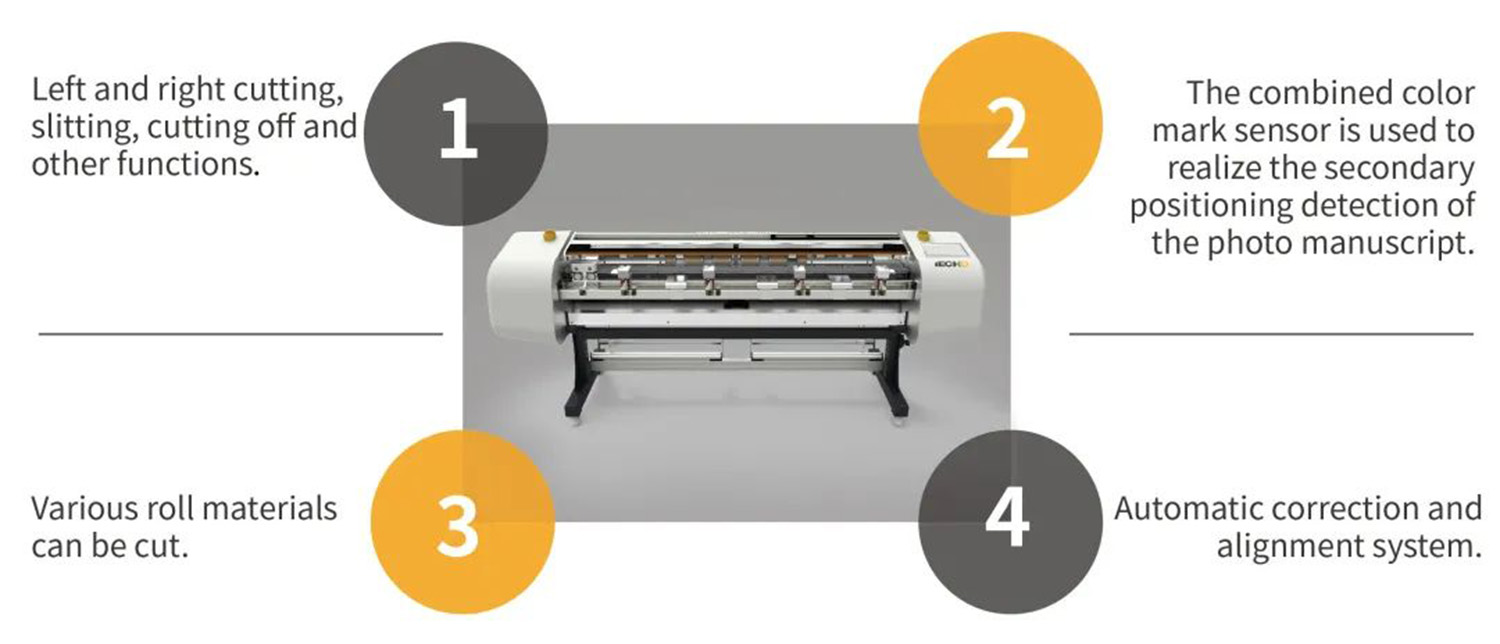

Main features of the iECHO 1700 XY automatic poster cutter

• Accurate two-way edge trimming (trims all 4 sides of the poster)
• Automatic registration mark detection
• Automatic two-way roll correction
• Numerous materials can be cut up to 1.5mm thickness
• 1700mm maximum width
• Single and dual self-edging circular knives

iECHO 1700 XY automatic poster cutter
iECHO 1700 XY automatic poster cutter

Industry Applications

• Mainly used inprinting packaging paper
• PP paper, adhesive PP (vinyl, polyvinyl chloride)
• Hotographic paper
• Engineering drawing paper
• Car sticker PVC (polycarbonate)
• Waterproof coating paper
• PU composite materials
• and many more...



Technical parameters

Model iECHO 1700 XY automatic poster cutter
Max cutting width 1700mm Standard Blade 4
Min cutting width 110mm Max Blade 10
Feeding speed 22m/min Net Weight 250kg
Max Roll Diameter Allowed 26cm;50kg Dimensions 2930mm x 800mm x 1180mm
Min cutting thickness 1,5mm Power Supply 220V; 50Hz
Cutting Accuracy 1mm Rated Power 1,5KW
Alignment System X&Y direction Operating Environment Temperature: 0-40°C; humidity: 20%-80RH



iECHO 1700 XY automatic poster cutter
Details

The price does not include the cost of delivery and installation! Please contact our colleagues!

Data
Type:
demo
Brand:
iECHO
Specifications

Model: iECHO 1700 XY automatic poster cutter
Max cutting width: 1700mm
Min cutting width: 110mm
Feeding speed: 22m/min
Max roll diameter allowed: 26cm; 50kg
Min cutting thickness: 1,5mm
Cutting accurary: 1mm
Alignment system: X&Y direction
Standard blade: 4
Max blade: 10
Net weight: 250kg
Dimensions: 2930mm x 800mm x 1180mm
Power supply: 220V; 50 Hz
Rated power: 1,5KW
Operating environment: Temperature: 0-40°C; humidity: 20%-80RH
