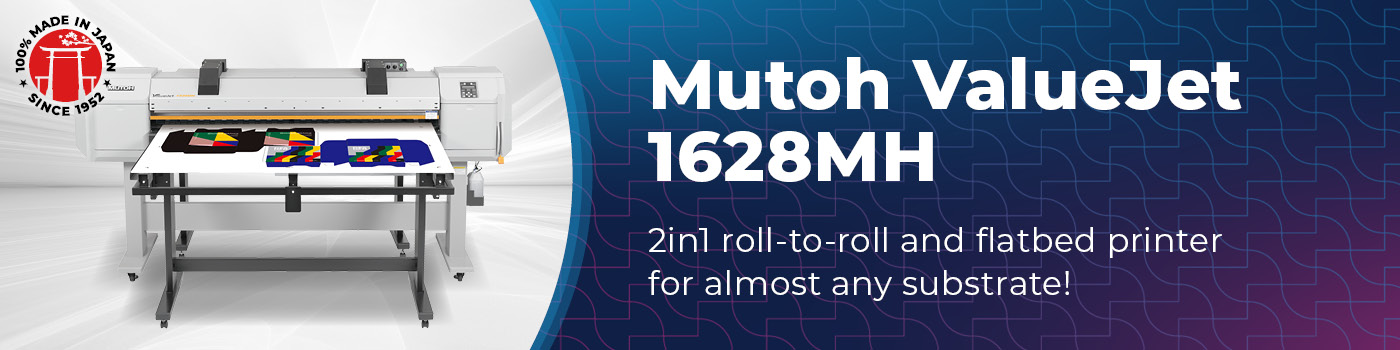

Mutoh ValueJet VJ-1628MH Hybrid resin printer

Shipping time:

2-3 weeks

Request for quotation

Resin-based multifunctional Hybrid printer for industrial printing of roll-to-roll and rigid board materials. Unique resin-based ink with 8 colors and excellent color gamut. You can print on aluminum composite, ABS, PVC, paper, polyester, corrugated cardboard and many other materials, even heat-sensitive materials! Japanese top quality!

Complete system: printer + ink + RIP software + Full service

MUTOH: Japanese precision and constant development

Mutoh is one of the world's leading manufacturers of wide-format digital printers and cutting plotters, which are all designed and manufactured exclusively in Japan, from the consumables to the very last screw. With numerous sales points in Europe, the Middle East and Africa, the brand name is now synonymous with stable quality and reliability.

Japanese Mutoh values precision and high quality through craftmanship – in contrast to the accelerated production which results in poor quality typical of Chinese brands. From the engineering design of new products, through the assembly by expert colleagues, to the improvement of existing products, the entire process implements the Japanese Kaizen philosophy, the central idea of which is the pursuit of continuous improvement. The company, founded in 1952, is therefore not stuck in the past: with seventy years of experience behind them, they are constantly working to provide state-of-the-art technological solutions.

One printer for everything!

It might sound like an exaggeration, but Mutoh ValueJet 1628MH is quite possibly the most versatile printer on the market right now. Similarily to he smaller, Mutoh ValueJet 628MP model, it uses resin-based inks, which stand out with their unparalleled media-compatibility. But the hybrid ValueJet 1628MH model goes even further: providing both roll-to-roll printing up to 162 cm (64") and flatbed printing for rigid materials up to 16 mm thickness at a high printing speed of up to 12 m²/h. A perfect choice for graphic companies for both indoor and outdoor prints as well as unique gift making or even producing packaging prototypes.

Our offer includes the original MUTOH Multi Purpose inks, which provide you durable, vivid, high-quality prints and extremely accurate color reproduction with 8 colors (CMYK + White + 3 spot colors of orange, green and blue). They can be fixed and dried at regular heating temperatures (max. 50 °C), doesn't require pre-coating, and the material retains its original texture or surface effect even after printing (unlike for example traditional UV printing).. The inks' remarkable flexibility and shrinkability enables post-procession of vacuum-formed and shrink-wrapped materials. In addition to the inks, the printer comes with original MUTOH VerteLith RIP software, which enables you to maximize its capabilities, as well as our usual Signdepot Full Service.

Resin: a unique digital print solution

Resin-based inks open a new horizon in printing. It is currently the only digital print solution available that is capable of printing directly onto a wide variety of roll and hard media without primer or pre-coating, such as shrink film, uncoated label stock, corrugated board and many more. This versatility makes it a “Swiss army knife” for graphic studios!

The unique properties of resin ink make it especially fitting for the production of packaging prototypes. It offers the possibility to print onto the exact same material that will be used in the final production run. Unlike UV inks, multi-purpose inks will retain the look and feel as well as other specific physical properties of the target substrates, so the proofs will have the physical feel of the final product. It is not possible to cover these applications with a regular transfer film and water-based inks or eco-solvent inks. This solution will not only allow to print directly on the original substrates, it will also allow the packaging professionals to inspect the exact distortion of the shrink sleeve prototype. This is possible thanks to the unique stretch and shrink possibilities of the ink together with the film.

Gentle ink fixing with a combined heating system

To adapt the chassis of the Mutoh ValueJet 1628MP printer to the unique properties of the multi-purpose resin inks, Mutoh developed a mild temperature low pressure hot air knife system. In combination with the contact heaters under the media, there is a 64" hot air blow system above, which allows the MP31 multi-purpose inks to dry on top of non-coated media without exposing them to excessive heat. The air knife system together with the contact heaters heats the media up to ~ 40-50 degrees which enables a wide substrate compatibility.

Top quality Micro Piezo printhead

Mutoh has been integrating piezo printheads since 1999. Due to decades of experience and continuous development, their printheads are now worthy opponents of the most well-known brands. Mutoh ValueJet 1628MP hybrid resin printer is equipped with an 8 channel, 1440 nozzle Micro Piezo printhead to provide exceptional print quality. ValueJet 1628MP model provides 4–8 ink setup modes (CMYK+W+OBG), ensuring enhanced color gamut and extremely accurate colour reproduction. Thanks to the Piezo Variable Drop Technology, the ink drop mass ranges from 4 picoliters up to 21.3 picoliters, ensuring perfect coverage and precise ink landing from the thinnest to the thickest materials. Printing speed could reach 12 m²/h.

Roll-to-roll printing

With Mutoh ValueJet 1628MH Hybrid resin printer, you can print on materials up to 1625 mm wide, 150 mm in diameter and 30 kg in weight in roll mode. The printers's motorized torque controlled take-up system, which is linked to the printer and follows the start and stop of printing, automatizes the printing process thus increases productivity.

The media loading system in this printer has been optimized to meet the wide media compatibility provided by the inks. The multi-level pinch rollers provide smooth feeding and transport of various media, including thin or slippery substrates, for example very thin shrink films. Each roller's pressure is adjustable for optimal performance.

Printing on rigid materials

To expand your creative possibilities, the printer comes with front and back support tables, which can be easily adjusted and removed, and easy-to move due to their wheels. To enable flexible media handling, the table's support bars can be moved freely and you can add extra ones if needed. To help you position and align rigid materials, you can add a media positioning option with adjustable fins.

In flat mode, you can print on media up to 1625 mm wide, 15 mm thick and weighing up to 15 kg. (The recommended length is at least 200 mm and up to 1200 mm.) Media thickness is measured electronically and the printer automatically adjusts head height accordingly, so you can spare time on manual adjustments.

Genuine MUTOH resin based inks

The key to Mutoh's success is that all development is done in-house, resulting in 100% coordinated systems. This also includes consumables: they have developed dedicated inks tuned to specific piezo heads, covering specific applications to achieve the perfect end results. For Mutoh ValueJet 1628MP it is MP31 resin based ink. MP stands for “Multi-Purpose”, which refers to the unique capabilities of the inks and their extreme versatility.

Suitable for roll and rigid substrates
Great results on white, transparent and coloured materials
Can be fixed and dried at regular heating temperatures (max. 50 °C)
Remarkable flexibility and shrinkability: won’t crack even when bent, enables post-procession of vacuum-formed and shrink-wrapped materials
Preserve the natural texture and look of substrates (eg. matte or glossy look)
Enhanced color gamut and extremely accurate colour reproduction with up to 8 colors, including spot-color inks (orange, blue, and green)
Suitable for both indoor and outdoor prints – outdoor UV resistance up to 2 years*
Low odor

*UV durability without lamination. It is highly recommended to laminate outdoor and long-term indoor prints to extend durability!

Optimize the performance of your Mutoh printer: VerteLith™ RIP software

The price includes VerteLith™ RIP software, specially developed by Mutoh for their printers, which allows you to maximize the capabilities of your printer:

A features list unmatched in its category (printer statuses, color management, pre-production tools, soft proofing, post-processing preparation tools, etc.)
User-friendly interface, simple workflow
Fast RIP processing for both PDF and PostScript files
„Mutoh Clear Tone” technology: outstandingly smooth color gradients
Perfect handling of transparencies and spot colors
Built in „Mutoh CMYK” ICC profile to maximize gamut
Professional profiling tools
Multi language chat support

VerteLith™ has won the prestigious EDP Award in 2021, recognizing it as “ideal for smaller print shops" which "offers functionality that you will find only at expensive RIP's from independent RIP vendors."

Say goodbye to limitations!

Mutoh ValueJet 1628MP hybrid resin printer is an ideal choice for graphic studios but also companies specialized in packaging and label production for prototypes and small volume packaging. Due to the unique print solution, it is capable of printing directly onto a wide variety of roll and rigid media without primer or pre-coating. Printable materials include: vinyl, shrink film, various types of film, paper, canvas, ABS, aluminium, sandwich board, cardboard, non PVC media, PE, PET, PMMA, PVC foam board, recyclable fibre based paper, uncoated polyester, etc.

You can produce:

Posters, billboards, banners, molinos, illuminated signs
Exhibition equipment, roll-up, popup, POS and other display elements
Advertising boards, information boards, corporate signage
Office decoration: window stickers, door stickers, wall stickers
Home decor: unique wallpapers, art reproduction, printed furniture boards
Packaging: gift bags, shopping bags, boxes, labels, shrink film packaging, chip and candy bags, etc.

Full Service

Since we plan with our customers for the long term, it is important for us to support our customers as a reliable partner from the decision making to the post-warranty service. Our Full Service means that the prices of our machines include everything:

Needs assessment, product presentation, quotation
Delivery and installation within Hungary, commissioning and training
After-sales support and service (without annual service fee!)
Plus: post-warranty service at a favorable price

Choose a reliable Mutoh partner!

Ou company, as an official Mutoh partner in Hungary, provides servicing for Mutoh printers both during and after the warranty period by our own (not provided by an external company!) trained service technician colleagues.

Signdepot has been dealing with small and large format printers and other sign making machines for 20 years. Our service technicians are trained at Mutoh factory to always have an up-to-date knowledge on the machines. We not only guarantee excellent prices but also appropriate professional support!

Ask for quotation now!

sales@signdepot.eu

Details

A Signdepot 2025-től a MUTOH hivatalos partnere Magyarországon.

Info

Type:

resin printer

Brand:

MUTOH

Specifications

Model: MUTOH ValueJet 1628MH
Type: hybrid resin roll-to-roll + flatbed printer Max. printable width: 1615 mm (64")
Printable materials: roll media (eg. foil, shrink film, tarpaulin, paper, canvas, roll-up, etc.) + rigid materials (pl. PVC, acrylic, cardboard, wood, ABS, PC, PE, PET, glass, aluminium, etc.)
Media measurements roll: width:185 mm–1625 mm / thickness: 16mm / diameter: max. 150 mm / weight: max. 30 kg
Media measurements rigid: width:182 mm–1625 mm / recommended length: 200-1200 mm / thickness: max. 16 mm / weight: max. 15 kg
Head height setting: automatic adjustment according to media thickness
Max. printing speed: 11.95 m²/h (720×720dpi CMYK printing)
Max. print resolution: 1440 × 1440 dpi
Printhead: 1pcs, 8 channel Micro Piezo printhead (8×180 nozzles)
Drop mass range: 4 pl – 21.3 pl
Ink type: MP31 Multi-Purpose resin ink (cartridges or packs)
Ink colors: CMYK+W+OGB
Ink consumption: ~6.6 ml/m² (average consumption at 720dpi CMYK setup)
Ink fixing: mild temperature (ca. 40-50 °C), low pressure hot air knife system
Roll off system: standard, non-motorized
Take-up system: motorized (30kg)
Power consumption: <2500 W
RIP software: Mutoh VerteLith
Recommended Working Environment: temperature: 20-28°C, humidity: 40-60% (max. fluctuation: 2 °C/h / 5% RH/h)
Size: 2698 x 818 x 1302 mm (roll) / 2698 x 2730 x 1302 mm (rigid)
Weight: 201.6 kg (printer+stand)
